RIDGID SeeSnake NANOreel Inspection Camera with CA-350 Handheld Camera – 77583

RIDGID SeeSnake NANOreel Inspection Camera with CA-350 Handheld Camera – 77583

£4,924.39 (ex VAT: £4,103.66)

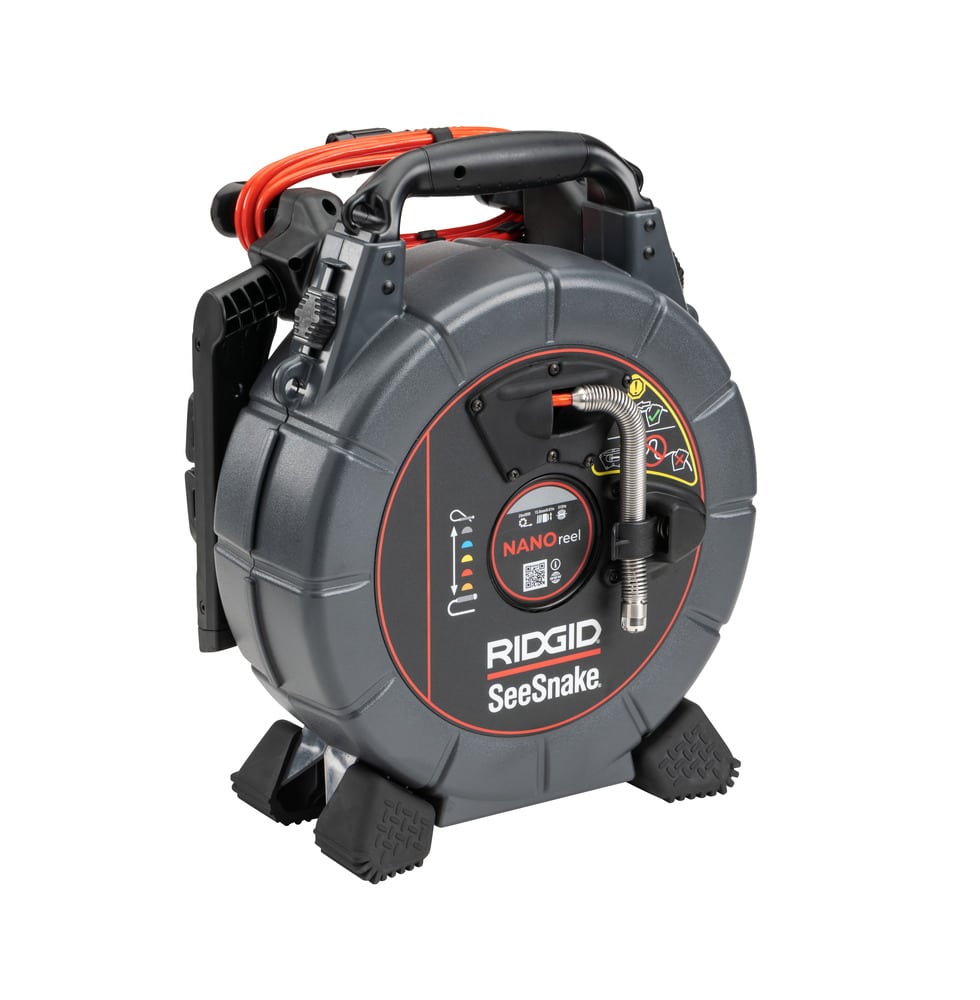

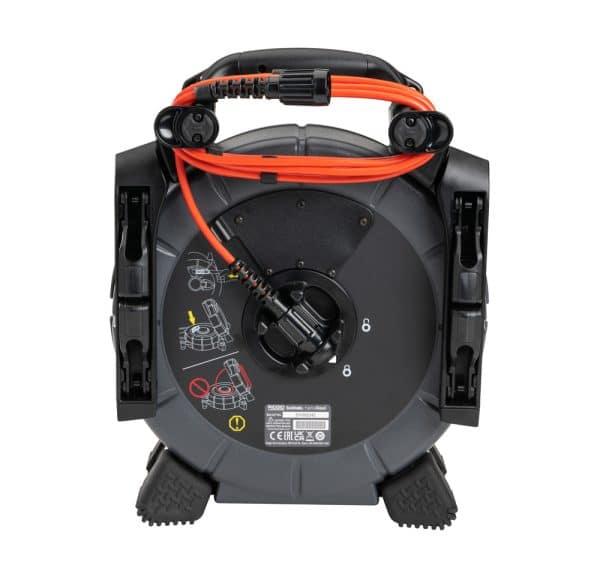

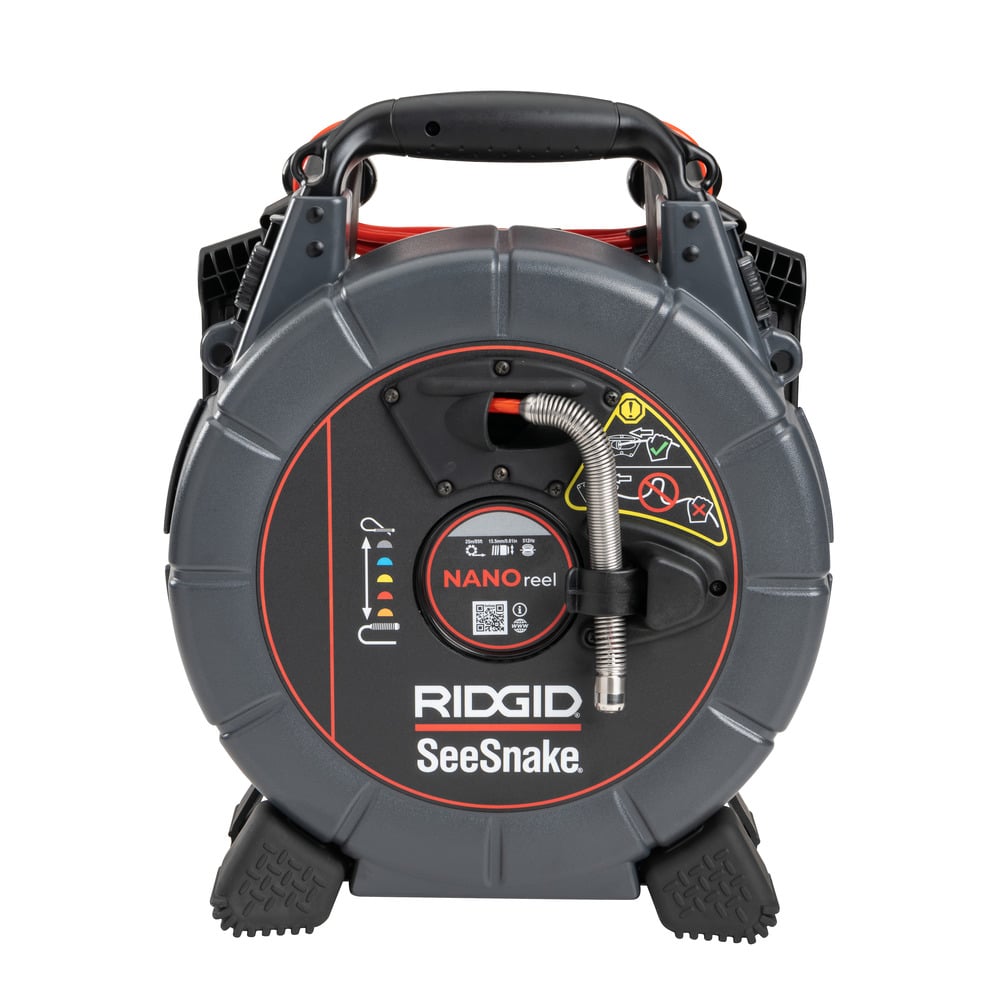

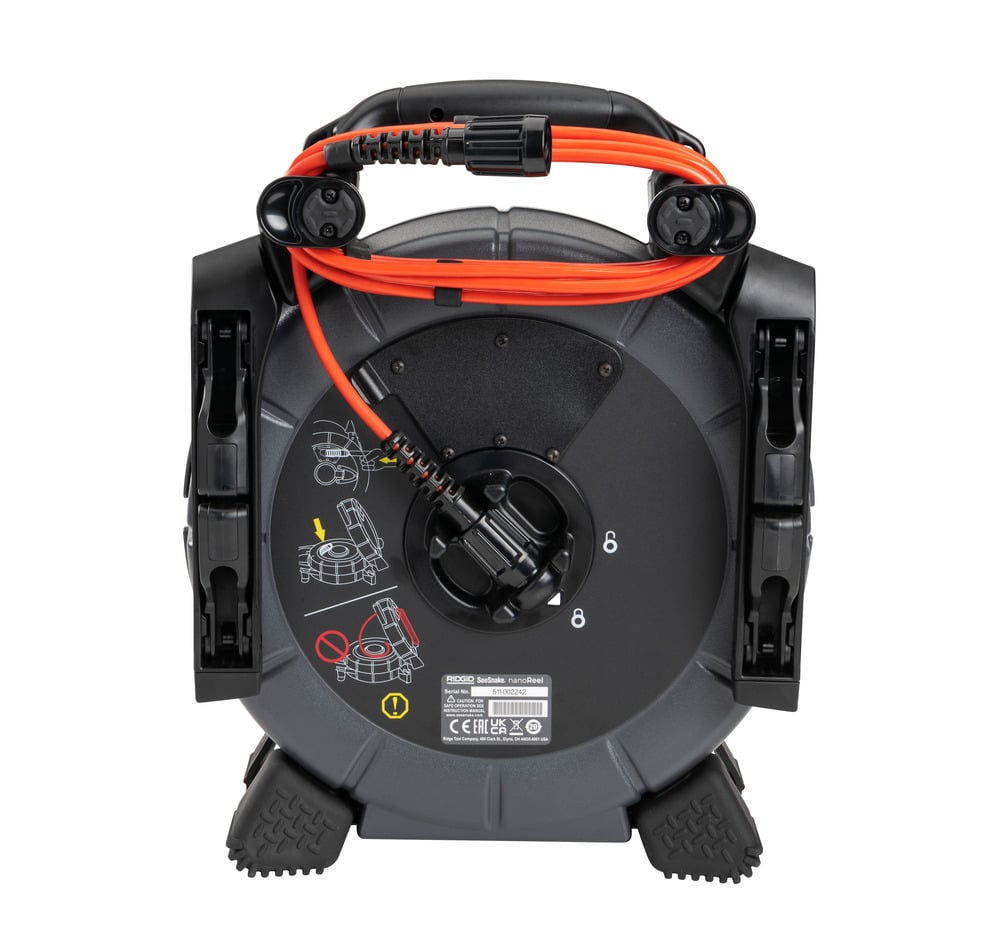

The RIDGID SeeSnake® NanoReel Inspection Camera opens new possibilities in professional drain and pipe inspection, featuring the smallest-diameter camera and most flexible push cable in the SeeSnake® range.

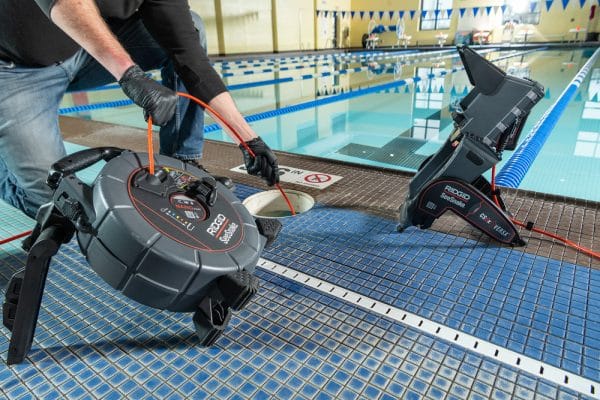

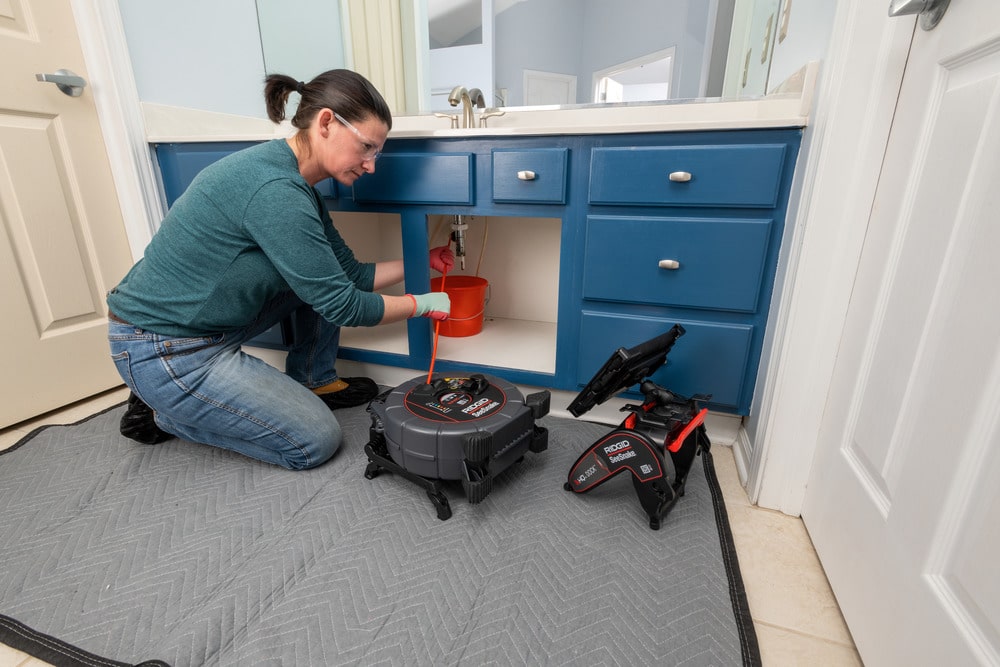

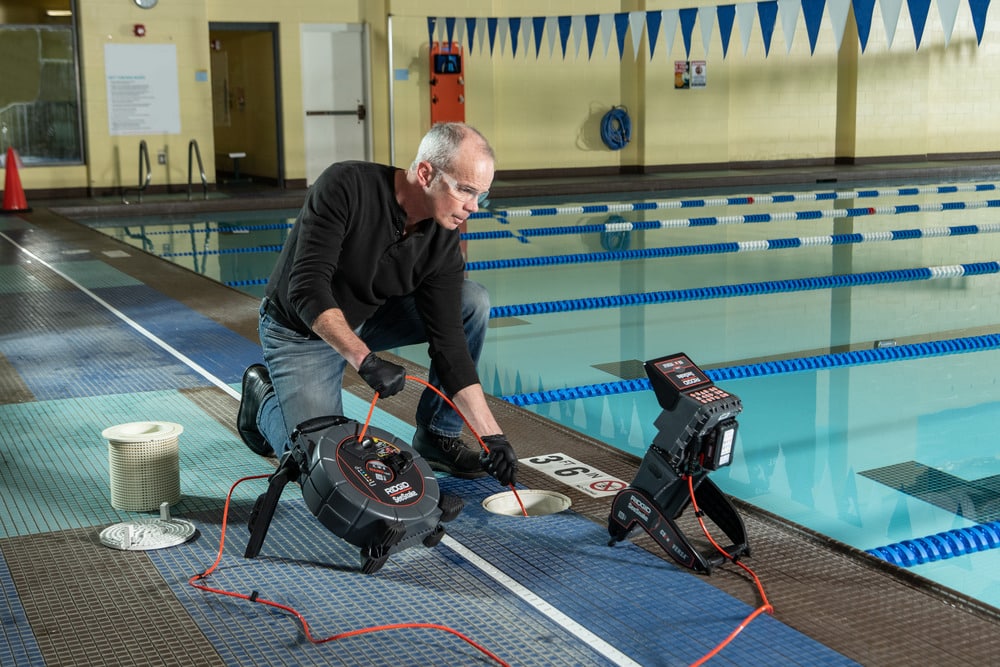

This compact reel is ideal for long-run, small-diameter applications. Areas once accessible only by borescopes, such as boiler tubes, supply lines and sprinkler systems – can now be inspected with precision using the NanoReel inspection camera.

Supplied complete with the RIDGID CA-350 Handheld Camera System.

In stock

Loading...

Description

Features

  • Maneuverability – Small 15mm camera head with ultra flexible push cable navigates tight spaces.
  • Portability – Lightweight and compact carrying case design is easy to carry to jobsites and store in between.
  • Stability – Built-in kickstand can be used upright for tight spaces, at an angle for added leverage or on four feet to accommodate the CSx Via.
  • Durability – Hardened stainless steel camera head & spring assembly is durable and reliable for a long service life.
  • Visibility – Camera heads feature long-lasting high-efficiency LEDs that provide greater views inside pipes.
  • Traceability – Integrated 512Hz sonde allows for easy line tracing and locating.
  • Versatility – Use with any SeeSnake monitor or Wi-Fi Hub.

  • 71498 – Spare, Slipring Connector
  • 67307 – Assy, Interconnect Cable, Overmolded, 3m (10’)
  • 69758 – Kickstand Accessory
  • 42778 – Kit, Pipe Guide 30mm OD & Camera Head Guide 25mm OD, 15.5mm Camera Head

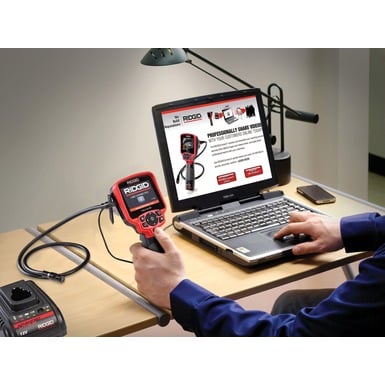

  • 55903 – CA-350 Handheld Inspection Camera, includes 12V Battery and Charger
  • 67808 – SeeSnake® CA-350 Adapter and Docking Handle

Specifications

Camera Diameter 15.5 mm
Camera Type Fixed
Resolution 656 x 492 pixels
Line Capacity 1″ to 2″ (25 mm to 51 mm)
Push Cable Length 82 ft (25 m)
Push Cable Diameter 0.28 in (7.2 mm)
Cable Flexibility Ultra Flex
Push Cable Minimum Bend Radius 1 in (25 mm)
Sonde 512 Hz, Integrated
Weight 12.7 lbs (5.7 kg)
Length 13.3 in (337 mm)
Width 8.8 in (224 mm)
Height 16.2 in (411 mm)
Drum Diameter 12 in (305 mm)
