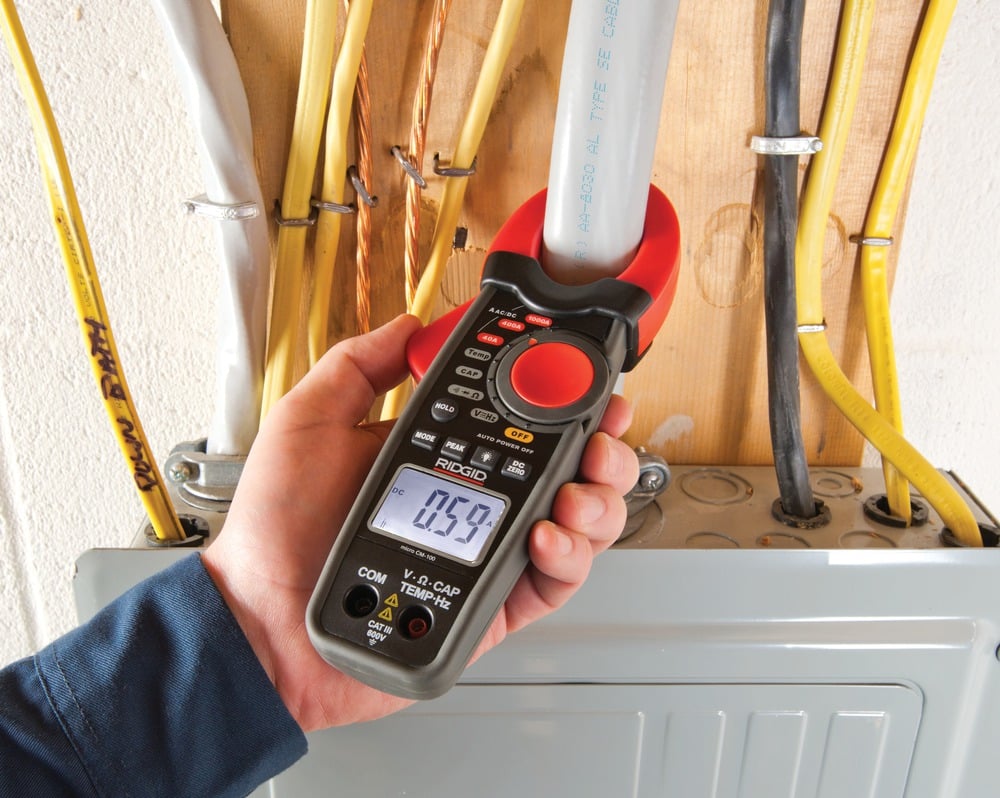

RIDGID CM-100 Digital Clamp Meter

Slim and double-molded design provides easy one-handed operation and can be conveniently used in confined cable compartments. Included in the Micro CM-100 offering are: soft carrying case, test leads, Type K temperature probe and 9V battery.

Features

• large capacity & measuring range.
• 10 Functions in one.
• AutoRanging/true RMS.

Specifications

• Power Source – 9V battery (included)
• Display – 4000 Count Backlit LCD
• Clamp Size – Max. 30mm O.D. cable
• Overload Protection – CAT III 600V
• Polarity Indication – Yes, Automatic
• Auto Power Off – Yes, After 20 minutes
• AutoRanging – Yes
• True RMS – Yes
• AC/DC Current Range – 40A/400A/1000A
• Data & Peak Hold – Yes
• Voltage AC/DC – 400mV-600V
• Current AC/DC – 40A-1000A
• Resistance – 400ohm – 40Mohm
• Capacitance – 4nF – 40mF
• Frequency – Up to 4 kHz
• Diode Test – 1.5V
• Continuity Test – 30ohm
• Temperature – -40°C-1000°C
